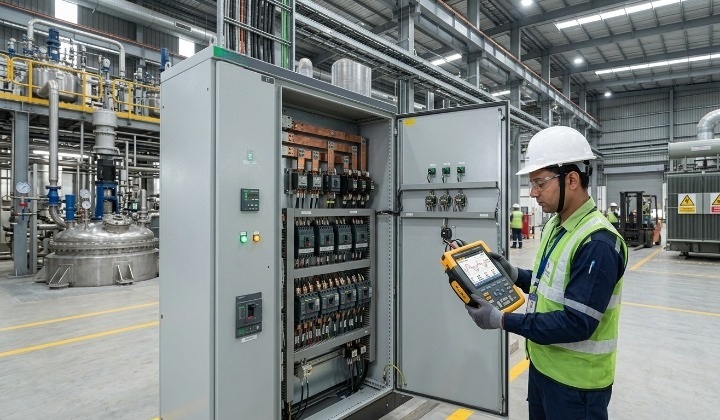

Which Power Supply Problem Is Causing Your Machine Failures?
The same machine failure can result from different upstream causes. A VFD tripping on overcurrent may indicate a voltage sag, harmonic overload, or a mis-set protection relay. Identifying the right cause requires measuring the right parameter at the right point in your distribution system.
| Symptom You Are Seeing | Likely Power Supply Cause | Study That Identifies It |
|---|---|---|
| VFD trips with overcurrent or undervoltage code, no process fault | Voltage sag or swell at machine terminal | Power Quality Audit |
| Motor rewound more than once in three years | Voltage unbalance or harmonic distortion degrading insulation | Power Quality Audit + Load Flow Analysis |
| PLC logic fault clears on reset, recurs under same load | Earthing deficiency or transient overvoltage | Electrical Safety Audit |
| Neutral conductor overheating, MCCB trips on feeder | Triplen harmonic content from VFDs or UPS loads | Power Quality Audit |
| Capacitor bank failure before rated life | Harmonic resonance or voltage swell | Power Quality Audit + Short Circuit Study |
| DISCOM reactive energy penalty on monthly bill | Poor power factor across distribution system | Load Flow Analysis |
Most facilities find more than one category present simultaneously. Harmonic distortion from VFDs worsens voltage distortion at the LT bus. Poor power factor increases feeder loading. Checking one parameter in isolation misses the actual combination driving the failures.
How Do Voltage Fluctuations Affect Production Equipment?
Voltage sags below a drive's undervoltage threshold trigger VFD overcurrent trips and PLC logic faults. Voltage swells push insulation past rated limits. CEA Safety Regulations 2023 Regulation 43 requires voltage regulation within ±6% at consumer terminals. IEC 60364-4-41 defines the allowable voltage band for LV industrial installations.
VFD fault codes record the drive's protection response, not the upstream cause. The drive stopped correctly. The problem is that the voltage arriving at the terminal was out of specification. Until the voltage at the LT bus is measured under all operating modes, the fault code is not a diagnosis.
Voltage Regulation at Consumer Terminals
Requires voltage regulation within ±6% of declared voltage at grid-connected consumer terminals.
LV Installation Voltage Band
Defines the allowable voltage band for low voltage industrial electrical installations.
Electrical Safety Practices
Indian standard covering electrical safety practices and LV installation voltage requirements for industrial facilities.
Safe Installation Practices
National Electrical Code requirements for electrical installation safety and voltage quality in industrial systems.
Why Does Harmonic Distortion Cause Machines to Trip?
IEEE 519-2022 limits voltage THD at the point of common coupling to 8% for systems below 1 kV. Harmonic distortion above this level overheats neutral conductors in 3-phase, 4-wire systems and causes overcurrent relays calibrated for sinusoidal load profiles to operate incorrectly.
Triplen harmonics (3rd, 9th, 15th order) from VFDs, UPS units, and switched-mode power supplies add in the neutral conductor rather than cancel. A neutral sized for balanced sinusoidal load overheats when the system carries significant harmonic content from VFD-heavy production lines.
Voltage THD Limit
Limits voltage Total Harmonic Distortion to 5% at the point of common coupling for systems below 1 kV.
Electromagnetic Compatibility
Covers power quality, harmonic limits, and immunity requirements for industrial electrical equipment.
Phase Unbalance and Poor Power Factor
Even a small voltage unbalance increases motor winding temperature. Per NEMA MG1, this relationship is non-linear: small unbalance causes disproportionate temperature rise, reducing insulation life. In facilities with unevenly distributed single-phase loads such as welding equipment or EV charging on the same LT bus as production machines, unbalance is common and often unmeasured. .
Poor power factor draws reactive current that produces no useful machine output. It occupies feeder and transformer capacity, increases losses, and attracts reactive energy penalties from the DISCOM. Load flow analysis maps reactive loading across operating modes and guides capacitor bank sizing and placement.
Facilities with welding equipment, EV charging, or unevenly distributed single-phase loads on the same LT bus as production machines frequently operate with phase unbalance and poor power factor — both measurable, both correctible, and both often undetected until a motor failure or DISCOM penalty makes them visible.
What Role Does Earthing Quality Play in Machine Reliability?
IS 3043:2018 requires earth resistance as low as possible for LV industrial installations. A high-resistance earth path raises touch voltage at machine frames, prevents overcurrent protection from clearing ground faults within expected clearance time, and routes fault current through control circuits. This appears as intermittent logic faults, not hard trips.
IS 3043:2018 — Requires earth resistance below 5 ohms for LV industrial installations. Earth pit resistance must be periodically measured and documented.
CEA Safety Regulations 2023 Regulation 40 — Requires protection systems to be maintained in correct working condition with documented settings. Earthing is a core component of this requirement.
Earthing resistance is not static: connections corrode, soil resistivity changes with season, and added equipment changes fault current distribution. CEA Safety Regulations 2023 Regulation 40 requires protection systems to be maintained in correct working condition with documented settings.
Key Indicators That Warrant a Power Quality Assessment
- VFD overcurrent or undervoltage fault codes with no identifiable process trigger
- Motors rewound more than once within a three-year operating cycle
- PLC logic faults that clear on power cycle but recur under similar load conditions
- Capacitor bank failures at intervals shorter than rated life expectancy
- Reactive energy penalty charges or low power factor notings from DISCOM
- Earthing resistance not measured within the last 12 months
Power supply problems in production machines accumulate as recurring trips, premature equipment failure, and rising maintenance cost. Most root causes are measurable: voltage THD, power factor, phase unbalance, and earthing resistance each have defined limits under CEA Safety Regulations 2023, IEEE 519-2022, and IS 3043:2018.
A Power Quality Audit using Class A instruments per IEC 61000-4-30, combined with ETAP-based load flow analysis, identifies which parameter is out of specification, under which operating mode, and at which point in the distribution system. That is the engineering basis for corrective action that holds.
Are recurring trips and equipment failures pointing to an upstream power supply issue? A measurement-based Power Quality Audit identifies the actual cause — not just the machine symptom.
Get a Professional Assessment →Frequently Asked Questions
What are the most common power supply problems that cause production machine tripping?
Voltage sags, harmonic distortion above IEEE 519-2022 limits, phase unbalance, poor power factor, and earthing deficiencies are common contributing factors. These categories often occur in combination. A multi-parameter measurement at machine terminals and transformer secondary identifies which are present.
What voltage fluctuation limits apply to industrial machines under Indian standards?
CEA Safety Regulations 2023 Regulation 43 requires voltage regulation within ±6% of declared voltage at grid-connected consumer terminals. IS 18732 and IEC 60364-4-41 define LV installation voltage band requirements. Voltage outside these limits at machine terminals is a compliance issue and a common cause of VFD and PLC faults.
When should a plant conduct a Power Quality Audit?
A Power Quality Audit is indicated when machines show recurring fault codes without a process cause, when motors are rewound more frequently than expected, when capacitor banks fail prematurely, or when DISCOM reactive energy charges appear. It is also appropriate after commissioning new VFDs or large UPS systems.
How does poor earthing cause electrical failures in production equipment?
A high-resistance earth path prevents fault current from reaching the overcurrent relay pickup threshold within expected clearance time. Fault current then flows through control circuits, causing intermittent logic faults. IS 3043:2018 requires earth resistance below 5 ohms for LV industrial installations. Regular measurement confirms the system remains in specification.
